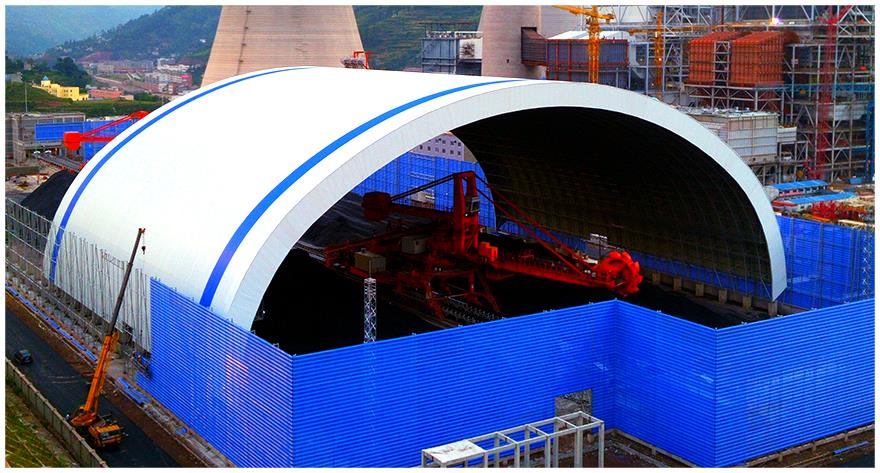

Guizhou Xishui Erlang Power Station Coal Shed

project introduction

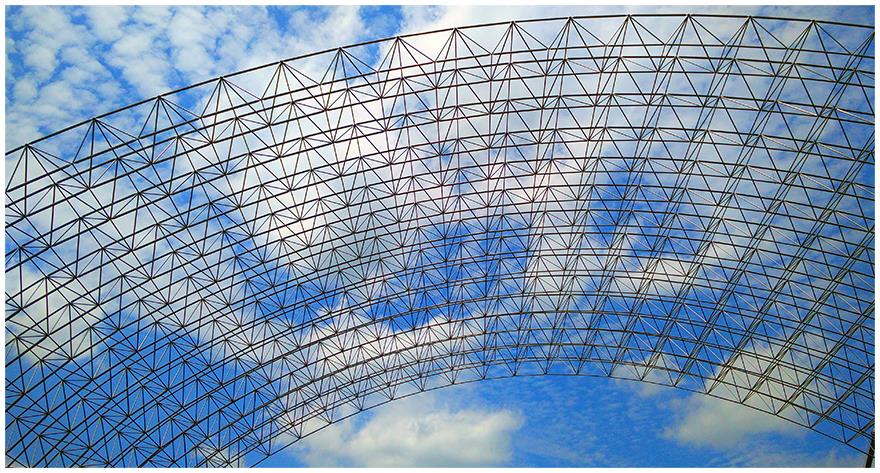

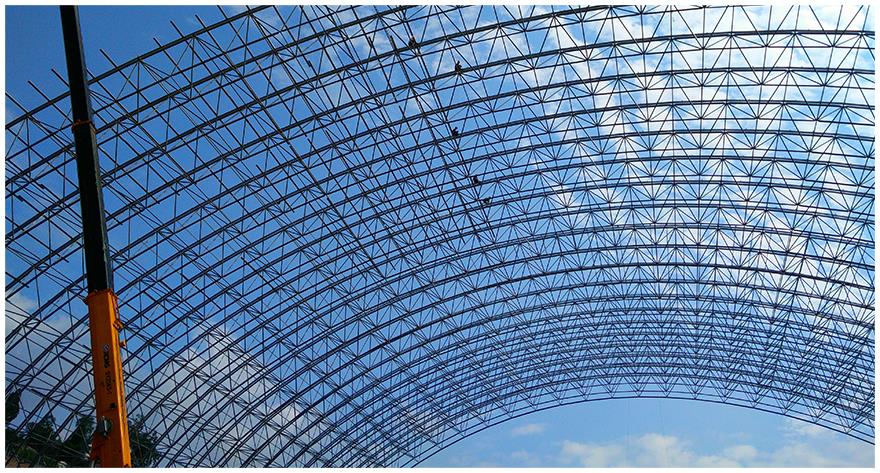

Longitudinal Space Frame Structure Coal Storage

 Item

 Specification

 Structural Type

 Longitudinal Space Frame Structure
 Main Frame  Steel Pipe   Q235 / Q355 Steel
 Bolt Ball  45# Steel
 Sleeve  Q235&45#
 High Strength Bolt  40Cr
 Secondary Frame  C-Purlin / Z-Purlin  Q235 / Q345, 250g/m2 galvanized, no painting on the surface
 Enclosure System  Roof Panel  Color Steel Panel / Al-Mg-Mn Panel
 (The colors&sizes of all panels can be customized as required.)
 Accessory Structure  Door  Rolling Door / Sliding Door
 Lighting System   FRP / PC / Window
 Ventilation System   Louver / Ventilator
 Drainage  Free Drainage
 Others  Design Standard  American Standard / European Standard / Chinese Standard
 Design Lifetime  Above 50 years
 Fabrication  ISO Quality Control
 Surface Treatment  Blast Cleaning Sa2.5 level, painting or galvanizing
 (The thickness can be customized as required.)
 Packing  Metal Frame for Large Components, Wooden Case or Metal Case for Small Components.
 Or Bundling
 Installation   Installation Guide
