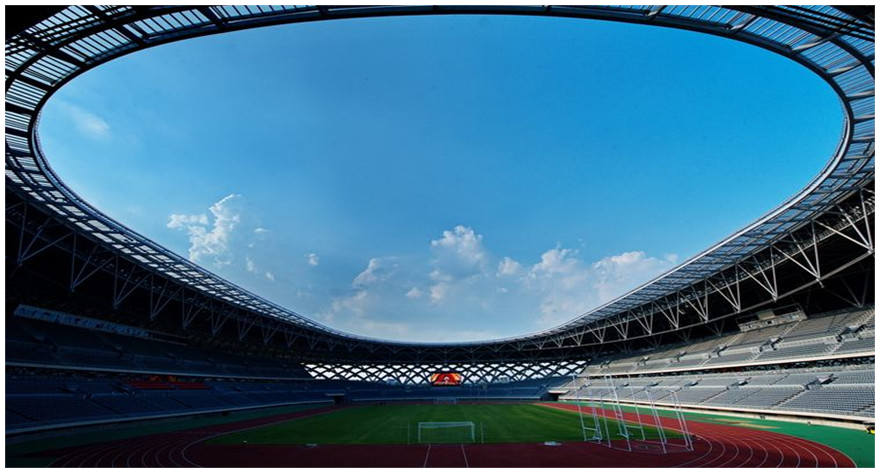

Xuzhou Olympic Sports Center Stadium Roof

project introduction


Xuzhou Olympic sports center stadium consists ofcomprehensive training venue, sports hall, swimming, diving, supporting service facilities and 6 individual buildings, underground garage. The total areais472800㎡, with a total construction area of 205513㎡. The stadium is 51240㎡, is the largest single building in Olympic sports center,whichcan accommodate 35000 people watching the game.

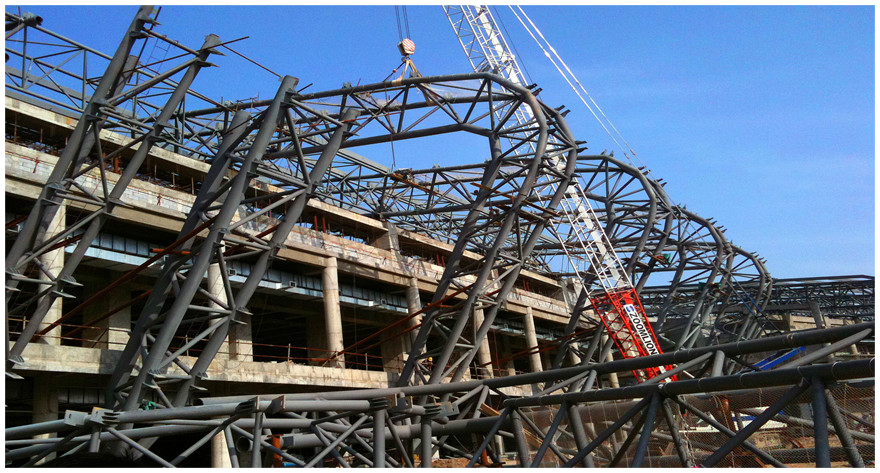

The steel structure of xuzhou Olympic Sports Center stadium is a circular cantilever cable bearing grid structure, which is similar to the chord-supported dome. As a derivative of the chord-supported dome, it is suitable for super large stadiums and other public buildings.


The stadium of Xuzhou Olympic Sports Center has a plane shape similar to an ellipse. The horizontal projection size of the structure is about 263mx243m. In the middle is an ellipse-like opening with a size of about 200mx129m. The maximum cantilever length of stadium roof is about 40m, the minimum cantilever length is about 16m, and the height is 43.277m. The whole structure is symmetrically distributed along the east-west and north-south directions.



Steel Tube Truss Stadium Roof Specification

 Items

 Specifications

 Structural Type

 Steel Tube Truss

 Main Frame

 Steel Tube

 Q235 / Q355 Steel

 Secondary Frame

 RHS

 Q235 / Q345, 250g/m2 galvanized, no painting on the surface

 Enclosure System

 Roof Panel

 Color Steel Panel / Al-Mg-Mn Panel
 (The colors&sizes of all panels can be customized as required.)

 Others

 Design Standard

 American Standard / European Standard / Chinese Standard

 Design Lifetime

 Above 50 years

 Fabrication

 ISO Quality Control, Self-inspection Test and The Third Party Inspection

 Surface Treatment

 Blast Cleaning Sa2.5 level, painting or galvanizing
 (The thickness can be customized as required.)

 Packing

 Metal Frame for Large Components, Wooden Case or Metal Case for Small Components.
 Or Bundling

 Installation

 Installation Guide
