Muguajie Clinker Storage

project introduction

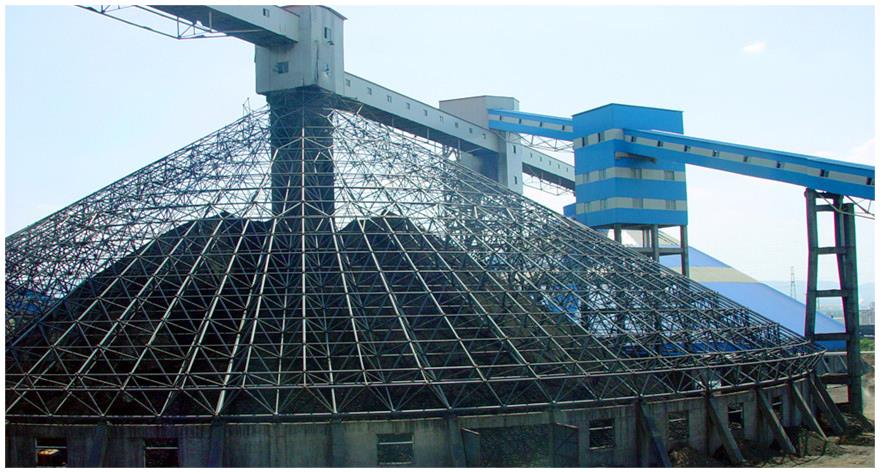

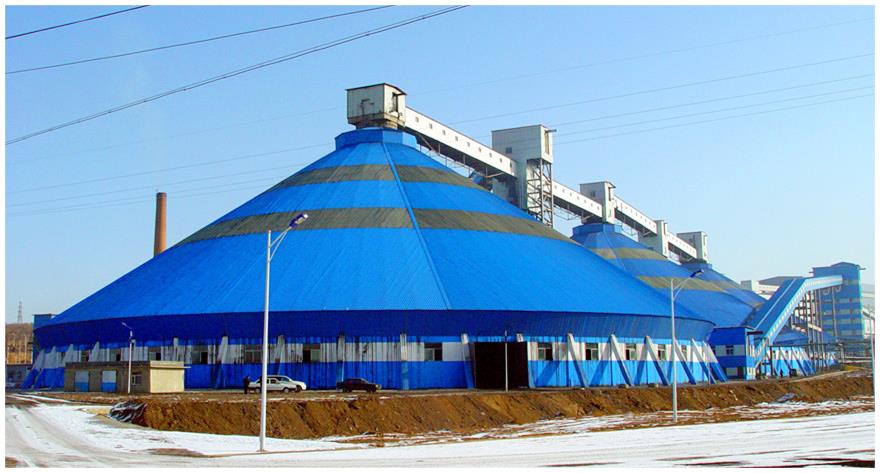

Muguajie clinker storage has a closed diameter of 102 meters and a height of 47 meters. It has 3 cone-shell grids with a total weight of about 2000 tons.

In the production process of cement plants, the clinker storage is an irreplaceable structure. Because the space frame structure has many advantages such as strong carrying capacity and fast installation and construction, the clinker storage generally adopts space frame roof technology. The construction of the space frame is very difficult due to its large size, heavy weight, high height, small construction space and poor conditions.

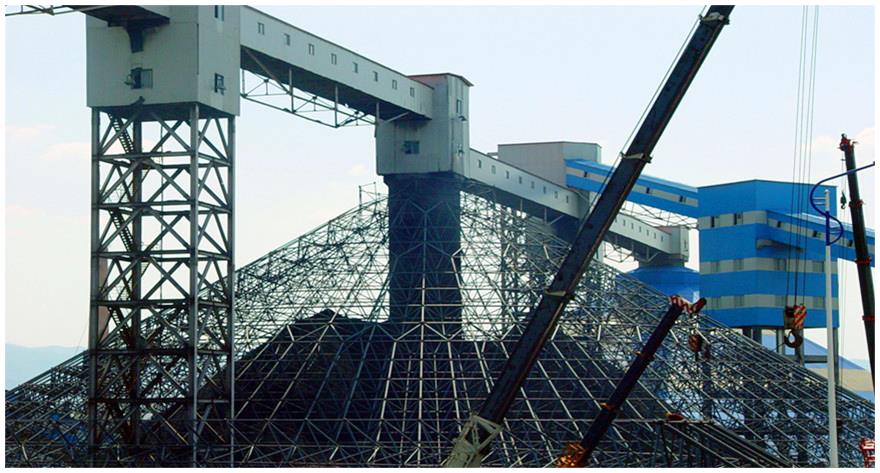

During the installation process of the clinker storage, the first three circles of assembly work are very important. After the basic circle of the space frame is assembled and closed, the basic circle has the self-supporting function. The remaining grid can be installed according to the high-altitude bulk method. It will be very convenient to complete the entire installation work.

Conoid Space Frame Clinker Storage Specification

 Item

 Specification

 Structural Type

 Conoid Space Frame Structure
 Main Frame  Steel Pipe   Q235 / Q355 Steel
 Bolt Ball  45# Steel
 Sleeve  Q235&45#
 High Strength Bolt  40Cr
 Secondary Frame  C-Purlin  Q235 / Q345, 250g/m2 galvanized, no painting on the surface
 Enclosure System  Roof Panel  Color Steel Panel / Al-Mg-Mn Panel
 (The colors&sizes of all panels can be customized as required.)
 Accessory Structure  Door  Rolling Door / Sliding Door
 Lighting System   FRP / PC / Window
 Ventilation System   Louver / Ventilator
 Drainage  Free Drainage / Galvanized Gutter / Stainless Gutter
 Others  Design Standard  American Standard / European Standard / Chinese Standard
 Design Lifetime  Above 50 years
 Fabrication  ISO Quality Control
 Surface Treatment  Blast Cleaning Sa2.5 level, painting or galvanizing
 (The thickness can be customized as required.)
 Packing  Metal Frame for Large Components, Wooden Case or Metal Case for Small components.
 Or Bundling
 Installation   Installation Guide
