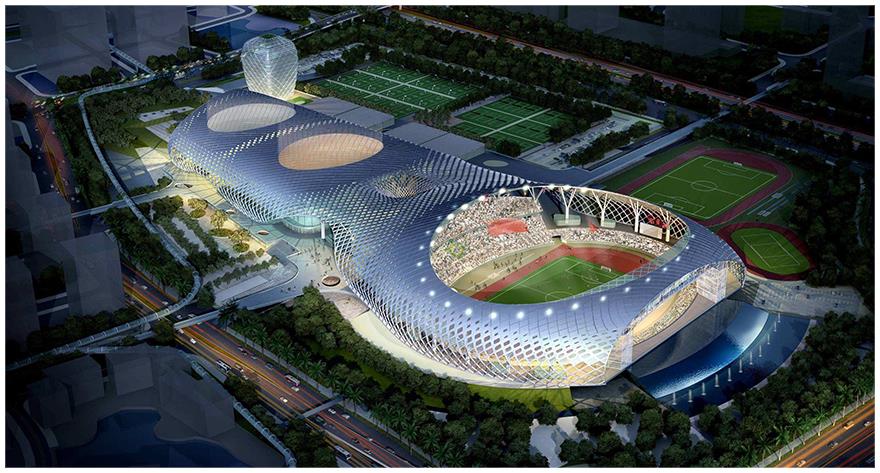

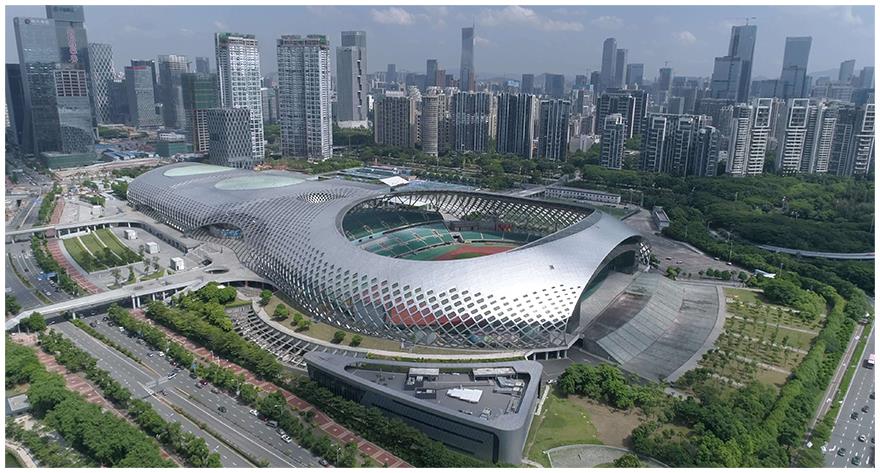

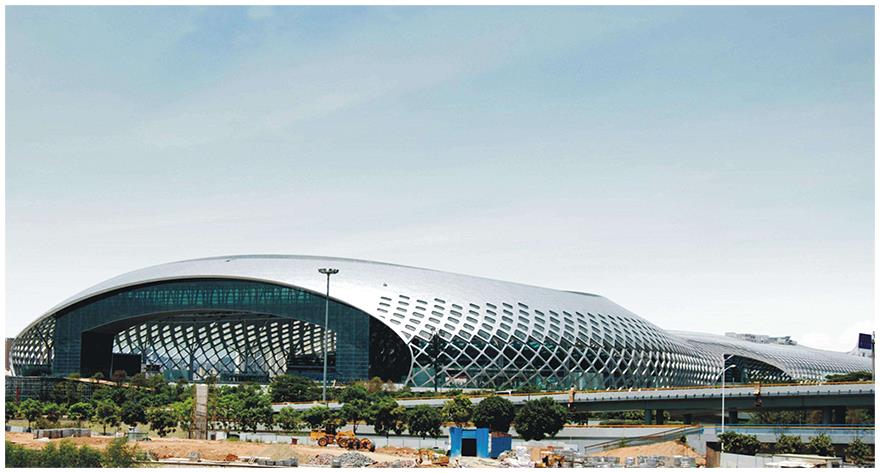

Shenzhen Bay Sports Centre Stadium Roof

project introduction

Guangzhou University Town Sports Center Stadium

The Guangzhou University Town Sports Center Stadium has a total construction area of 49,000 square meters, of which the main arena construction area is 47,000 square meters, and the competition venue area is 19,000 square meters; the secondary court construction area is 23,000 square meters and the competition venue area is 27,000 square meters. It can hold large-scale event opening ceremonies, international football, rugby matches, large-scale cultural performances and daily mass sports activities.

The roof structure of the main stadium east stand of the Central Stadium is a suspension cable steel structure system. The main member sections are welded or hot-rolled H-shaped sections. The column masts are made of round steel pipes. Artificial grass is laid on the top as the green top decoration; the roof structure of the west stand is a reticulated shell structure system, the maximum span of a single span is about 300 meters, the main member section is seamless steel pipe or straight seam steel pipe, and the roof is covered with white tensile film. Under the stands, there are the organizing committee office rooms, competition function rooms, management rooms, etc., VIP rooms, athletes’ lounges, referees’ lounges, arbitration rooms, medical rescue rooms, press conference rooms, and network computer rooms, which enable itto meet the requirements of hosting international events.

Steel Tube Truss Stadium Roof

 Items

 Specifications

 Structural Type

 Steel Tube Truss
 Main Frame  Steel Tube  Q235 / Q355 Steel
 Secondary Frame  RHS  Q235 / Q345, 250g/m2 galvanized, no painting on the surface
 Enclosure System  Roof Panel  Color Steel Panel / Al-Mg-Mn Panel
 (The colors&sizes of all panels can be customized as required.)
 Others  Design Standard  American Standard / European Standard / Chinese Standard
 Design Lifetime  Above 50 years
 Fabrication  ISO Quality Control, Self-inspection Test and The Third Party Inspection
 Surface Treatment  Blast Cleaning Sa2.5 level, painting or galvanizing
 (The thickness can be customized as required.)
 Packing  Metal Frame for Large Components, Wooden Case or Metal Case for Small Components.
 Or Bundling
 Installation   Installation Guide
